User Management—Users

Overview

A user is the lowest element of the administrative structure in your company. Usually they are individuals employed by your company (or granted access under other conditions) who do all the work. However, it could also be a group of people or a third party system with a specific set of credentials (login and password) that can be used to access OroCRM. To facilitate the management of business process in your company and ensure that users can perform their job effectively and in the same time the sensitive data of your company is well protected, it is essential to correctly configure user records and set up access settings.

Any amount of users can be created within one OroCRM system.

Create a User

  1. In the main menu, navigate System>User Management>Users.

  2. On the All Users page, click the Create User button in the upper-right corner of the page.

  3. On the Create User page, click General and fill in the following fields:

    • Owner—Select a business unit from the list. Note that the business units and organization the user has access to are determined by the settings made in the Access Settings section.

    • Status—Select a user status from the list. This field is mandatory.

      • Active—The user can log in into the system and to do their work within it, be an owner of entity records upon creation.
      • Inactive—The user cannot log into the system, be an owner of entity records upon creation.
    • Username—Type a name that the user will use to log into the system. This field is mandatory.

    • Password—Type a password that the user will use to log into the system. This field is mandatory.

    • Re-Enter Password—Type the password one more time to confirm it. This field is mandatory.

    • Name Prefix—Type a name prefix of the user. A name prefix is used in front of the user’s name and provides additional information about the user.

    • First Name—Type the first name of the user. You can use any number of characters of any alphabet in the name. This field is mandatory. A user’s first name is displayed on the interface when the user logs in.

    • Middle Name—Type the middle name of the user.

    • Last Name—Type the last name of the user. You can use any number of characters of any alphabet in the name. Together with the user’s first name, a user’s last name is displayed on the interface when user logs in.

    • Name Suffix— Type a name suffix of the user. A name suffix is used after the user’s name and provides additional information about the user.

    • Birthday—Click this field and select the user’s date of birth using a pop-up calendar. Alternatively, you can type the date in the format defined by your current locale (for more information about locales, see the Localization section).

    • Avatar—Click Choose File to locate a user’s photo or another picture associated with the user on your computer or other device.

    • Send An Email Invitation—Select this check box to send an email invitation to the user upon record creation. The invitation is sent to the email address specified in the Primary Email field.

    • Primary Email—Type the user’s main email address that will be used for communications. This field is mandatory.

    • Emails—Click the Add Another Email button and type an additional email address in the field that appears. You can add as many email addresses as required. To delete an email address, click the x icon next to the email field you want to delete.

    • Phone—Type the user’s phone number.


../../../_images/user_create_general.png

  1. Click Additional and provide more information about the user. In case any visible custom fields are added to the User entity, they appear in this section.

  2. Click Access Settings. This section must be filled in before the Groups and Roles section as the content available in the latter section depends on what is selected in Access Settings.

  3. (Only for Enterprise Edition) In the Organizations subsection, select the check boxes in front of the organization(s) you want the user to have access to.

    Caution

    Note that the user will not be able to log in to the system if no organization is selected for them.

  4. Click the Organization Business Units field and type the business unit name or select it from the list. On the list, you can see business units of the organizations selected in the Organizations subsection. Business users selected here determine which business units the data owned by the user will belong to. Therefore, for successful configuration it is essential to correctly specify business units in this section. For more information on how to select business units dependently on the company structure, see the Access to Organizations and Business Units Examples section.

    Note

    • You can select one or more business units. Then the data owned by the user will be considered as belonging to all these business units and users that have access to these business units and corresponding permissions will be able to access it.
    • In case the user’s role includes division level permissions, the user will be able to access data of each business unit specified in these sections, as well as the data of the whole chain of business units subordinated to those selected in this section.

../../../_images/user_create_accesssettings.png

  1. Click Groups and Roles. In the Groups subsection, select check boxes in front of the groups you want the user to be part of. All groups available in the system are listed here. A group is a set of users for convenience consolidated by one or more parameters. Instead of specifying each user one by one, you can specify a user group in filters and notification rules. For more information about groups, see the User Groups guide.

  2. In the Roles subsection, select check boxes in front of the roles you want the user to have. Roles are predefined sets of permissions. When you assign a role to a user, you can be sure that the user will have access only to the information within the system that is necessary for them to do their work. For more information about roles, see the Access and Roles Management guide.

    Important

    At least one role must be selected.

    Caution

    If the role is not ‘System-Wide’ and a particular organization is specified for it, check that the same organization is selected for a user in the Access Settings sections. Otherwise, the role does not appear in the Roles section.


../../../_images/user_create_groupsandroles.png

  1. Click Save in the upper-right corner of the page. Or, in case you need to create one more user, click the arrow next to the Save button and click Save and New in the menu. Then the current user will be saved and the blank Create User page will open.

Access to Organizations and Business Units Examples

Example 1.

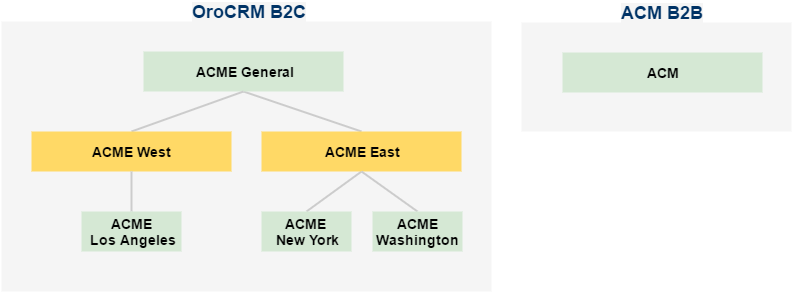

Give Todd access to two business units of the same organization.


../../../_images/user_bu_2_org_1_sch.png

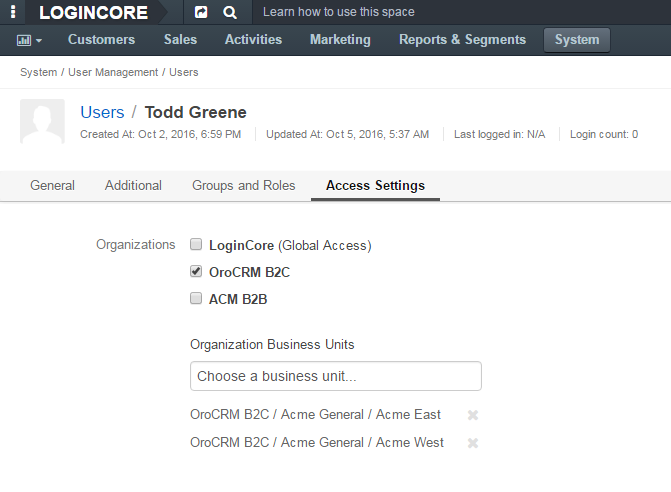

Select each of the business units in Access Settings. Configuration on the interface:


../../../_images/user_bu_2_org_1.png

Example 2.

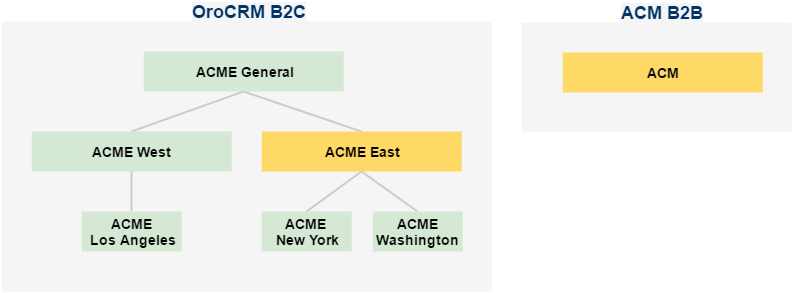

Give Todd access to two business units in different organizations.


../../../_images/user_bu_2_org_2_sch.png

Just select each of the organizations and business units to which Todd must have access in Access Settings. Configuration on the interface:


../../../_images/user_bu_2_org_2.png

Example 3.

Give Todd access to the business unit with all chain of its subunits.


../../../_images/user_bu_2dl_org_1_sch.png

There are two ways to give such access.

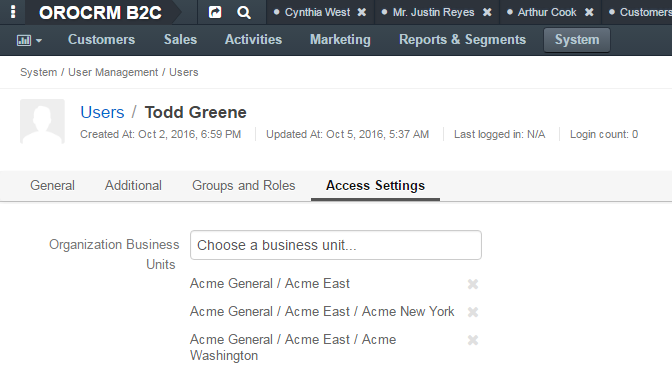

One, if Todd’s role includes business unit level permissions, is to give access to all the required business units individually. Configuration on the interface:


../../../_images/user_bu_2dl_org_1.png

Another approach can be used if Todd’s role includes division level permissions. A division is exactly a business unit with the whole chain of its subunits. Therefore, in this case, you can select only the top business unit of the division (ACME East in out example) in Access Settings and Todd will automatically have access to all subunits of the selected business unit and their subunits, and so on.

This can be useful if there is a chance that a new business unit may appear in the chain and Todd will require access to it too. There will be no need to reconfigure access settings for Todd.


../../../_images/user_bu_2dl_org_1_sch2.png

Example 4.

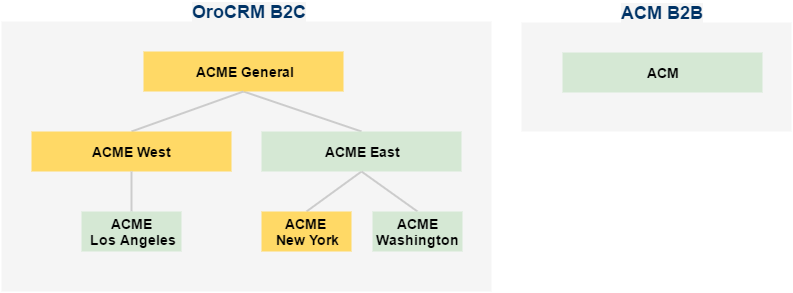

Give Todd access to the jointed and disjointed business units at different levels of the company structure.


../../../_images/user_bu_3dl_org_1_sch.png

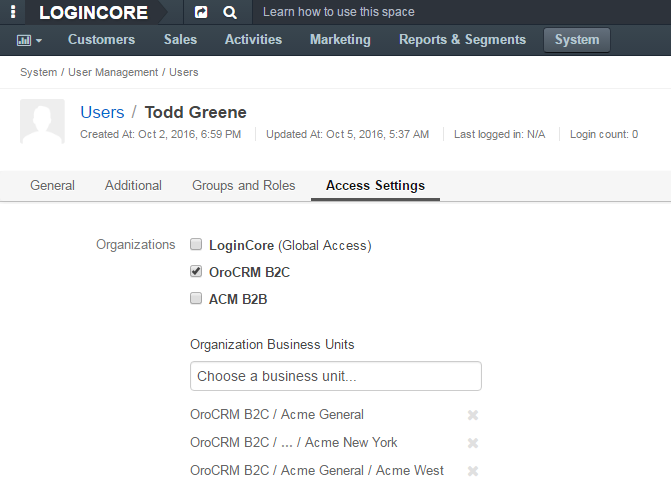

Just select an organization(s) and all the business units to which Todd must have access in Access Settings. Configuration on the interface:


../../../_images/user_bu_3dl_org_1.png

Create Users via LDAP

Important

This feature is available only for OroCRM Enterprise Edition.

If your company is utilizing LDAP (Lightweight Directory Access Protocol) server to guarantee that users can access corporate applications using the same credentials, you can significantly save time and effort on creating user records. OroCRM EE supports LDAP and thus allows you to import existing user information including role identifiers from the LDAP server into OroCRM.

To enable import of LDAP records, you first need to set up integration with LDAP. After the integration has been established, user profiles will be imported to OroCRM and users will be able to use their usual credentials to log into OroCRM.

Using LDAP integration does not prevent you from creating user records in OroCRM manually. Manually created user records will not be imported back to your LDAP server.

System administrators will be able to tell if a user has been added via the LDAP integration: for such users the LDAP Distinguished Names field of their view pages will not be empty and will contain the corresponding value.


../../../_images/user_ldap_distinguished_name.png

For how to configure the LDAP integration, please see the LDAP integration guide.

Review a User

  1. In the main menu, navigate System>User Management>Users.
  2. In the grid on the All Users page, click the required user.
  3. Review the user settings. Please, see details in the User Structure on the Interface section.

User Structure on the Interface

Top of the page

On the upper-left of the page, you can see the user’s avatar, their full name and status: whether the user is active (i.e. the user can log in, be a record’s owner, etc.) or inactive.

In the next row you can check when the user’s record was created, updated. Also, there is information about the date and time when the user last logged in and how many times they logged into the OroCRM in general.

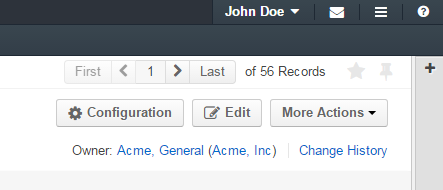

On the upper-right of the page, you can check which business unit owns the user record. Click the owner name to open the corresponding business unit view page. If you are logged into the organization with global access, then in brackets you will see the name of organization that owns the user.


../../../_images/user_review_pagetop.png

../../../_images/user_review_owner1.png

Other information about the user is divided into four sections.

General Information Section

This section contains information about the user filled in when creating the user.


../../../_images/user_review_general.png

FieldDescription
Usernamea name that the user will use to log into the system.
BirthdayA date of user’s birth and their calculated age.
Emails

A list of user’s email addresses. The first one (formatted in bold) is the user’s primary email address. Point to the email address and click the Email icon next to it to immediately compose an email to the user.

image:: ../img/user_management/user_email_write.png

Phone

A user’s phone number. Point to the phone and click the Phone or Hangouts icon next to it to immediately start a call with the user.

image:: ../img/user_management/user_hangouts_call.png

RolesA list of roles assigned to the user.
GroupsA list of groups to which the user belongs.
Business UnitsA list of business units the user has access to.
Tags

A list of tags added to the user. Point to the the tags name (or N/A if no tags are defined) and click the Edit icon next to them to add a new tag.

image:: ../img/user_management/user_tag_add.png

LDAP Distinguished NameA value of the dn LDAP field. This field is not empty for user only of their record has been imported from the LDAP server.
API keyAn API key generated for the user. Click the Generate Key button to generate a new key.

This section can also contain custom fields defined for the User entity (E.g. Title on the screenshot above).

Activity section

This section contains information about the user’s activities: emails sent and received, calls, etc. By default, the User entity has only the Email and Call activities enabled.


../../../_images/user_review_activity.png

You can filter activities by type and by date range when they took or will take place and browse them from the newest to the oldest and vice verse.

You can see who started the activity, its type, name and description, when it was created and number of comments added under it.

Click the activity to see detailed information about it.

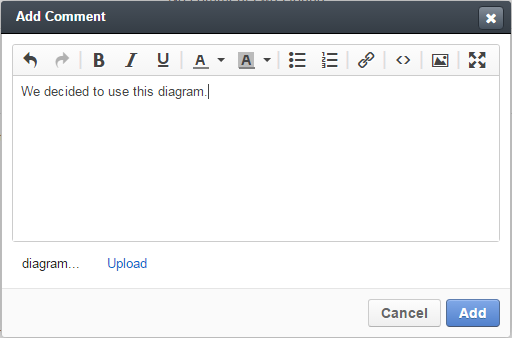

You can add a comment under a particular activity. To do this, click the activity to expand it and click the Add Comment button. In the Add Comment dialog box, type your message. Use the built-in text editor to format your comment. You can also attach a file to your comment. For this, click the Upload link in the dialog box and locate the required file. When the comment is ready, click Add.


../../../_images/user_review_activity_comment.png

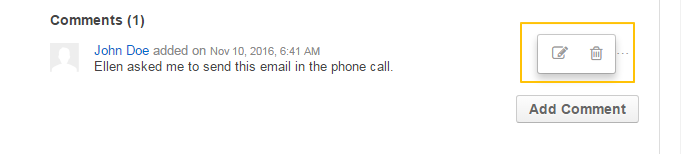

To edit or delete a comment, click the ellipsis menu next to it and click the IcEdit Edit or IcDelete Delete icon correspondingly.


../../../_images/user_review_activity_comment2.png

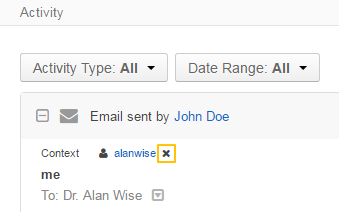

You can add and delete an activity context. To delete a context for an activity, click the x icon next to the required context.

To add a context to the activity, click the Context icon in the ellipsis menu at the right end of the activity row. In the Add Context Entity dialog box, choose the desired context and click it to select.


../../../_images/user_review_activity_context_delete.png


../../../_images/user_review_activity_context_add.png

You can open an activity view page. To do this, click the IcView View icon in the ellipsis menu at the right end of the activity row.


../../../_images/user_review_activity_context_add.png

For an email activity, you can reply / reply all / forward the corresponding email. To do this, click the corresponding icon in the ellipsis menu at the right end of the activity row.


../../../_images/user_review_activity_reply.png

Alternatively, you can select the required action from the list in the activity expanded area.


../../../_images/user_review_activity_reply2.png

You can delete a phone activity. To do this, click the IcDelete Delete icon in the ellipsis menu at the right end of the activity row.


../../../_images/user_review_activity_delete.png

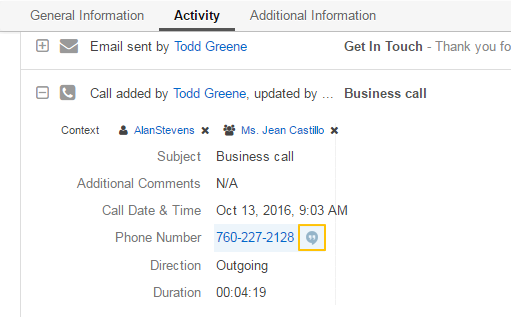

For a phone activity, you can call the user via Google Hangouts, if such functionality is enabled. To do this, point to the user’s phone number and click the Hangouts icon next to it. For how to enable Google Hangouts functionality, see the Voice and Video Calls via Hangouts guide.


../../../_images/user_review_activity_phone_hangouts.png

For more information about activities, see the OroCRM Activities Overview guide.

Additional Information Section

This section contains information about the user’s tasks and opened cases.


../../../_images/user_review_additional.png

Tasks Subsection

This grid contains information about tasks assigned to the user.

Tasks are activities that need to be accomplished by a user. Keeping track on tasks helps organize the work process and ensure that all the important work is done.

You can filter tasks by a variety of parameters. To open the task view page, click this task in the grid.

For more information about tasks management, see the Add Task and Assign Task guide.

Cases Subsection

This grid contains information about cases assigned to the user.

Cases are issues, problems or failures reported by customers or found internally. It’s important to record, monitor and solve cases in time to ensure that small and big issues do not harm your the company business.

You can filter cases by a variety of parameters. To open the case view page, click this case in the grid.

For more information about cases management, see the Create Case guide.

Edit a User

  1. In the main menu, navigate System>User Management>Users.
  2. In the grid on the All Users page, choose the user you want to delete, click the ellipsis menu at the right-hand end of the corresponding role and then click the IcEdit Edit icon.
  3. Make the required changes according to the description provided steps 3–9 of the Create a User section.
  4. Click the Save button in the upper-right corner of the page.

Generate an API Key for a User

When the integration with a third-party software or other work requirements demand a user to have the API access to OroCRM, generate an API key for the user. This key will be used to grant a user access to API while protecting their password from being disclosed to the third party.

  1. In the main menu, navigate System>User Management>Users.
  2. In the grid on the All Users page, click the required user.
  3. On the user view page, click General Information.
  4. Find the API Key field and click the Generate Key button next to it. A new API key appears. It will look similar to bba1b83312a50836d78cbef4d2705125a6ce1d4d.

After the API key is generated, the user will be able to execute API requests via the sandbox, Curl command, any other REST client or use the API via the custom application.

Important

Please note that an API key must be generated within the organization the data of which it will be used to access. Therefore, there can be a situation when a user record has been created under organization A and the user has access to and require an API key for organization B. In this case, you cannot generate an operational API key for the user. However, the user who has the corresponding permissions can log into the desired organization and generate an API key for themselves on the My User page.

Within one organization there can be only one API key at a time.

Send Email to a User

  1. In the main menu, navigate System>User Management>Users.
  2. In the grid on the All Users page, click the required user.
  3. On the user view page, click More Actions in the upper-right corner of the page and click Send Email on the list.

../../../_images/user_sendemail0.png

  1. In the Send Email dialog box, specify the required data. For help on this, see the beginning of the Send Email guide.

../../../_images/user_sendmail.png

  1. Click Send. The email will appear in the Activity section of the user view page.

Log a User’s Call

  1. In the main menu, navigate System>User Management>Users.
  2. In the grid on the All Users page, click the required user.
  3. On the user view page, click More Actions in the upper-right corner of the page and click Log Call on the list.

../../../_images/user_logcall0.png

  1. In the Log Call dialog box, specify the required data. For help on this, see the Log a Call Related to Another Entity Record section of the Log Call guide.

../../../_images/user_logcall.png

  1. Click Log Call. The call will appear in the Activity section of the user view page.

Assign an Event to a User

  1. In the main menu, navigate System>User Management>Users.
  2. In the grid on the All Users page, click the required user.

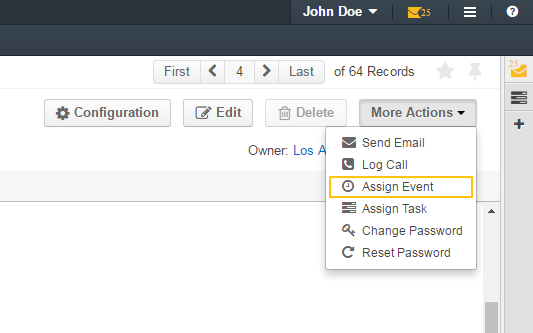

  3. On the user view page, click More Actions in the upper-right corner of the page and click Assign Event on the list.

../../../_images/user_assignevent0.png

  1. In the Assign Event To dialog box, specify the required data. For help on this, see the Add an Event for a Related Record section of the Add and Assign Calendar Events guide.

../../../_images/user_assignevent.png

  1. Click Save. The event will appear in the Activities section of the user view page.

Assign a Task to a User

  1. In the main menu, navigate System>User Management>Users.
  2. In the grid on the All Users page, click the required user.

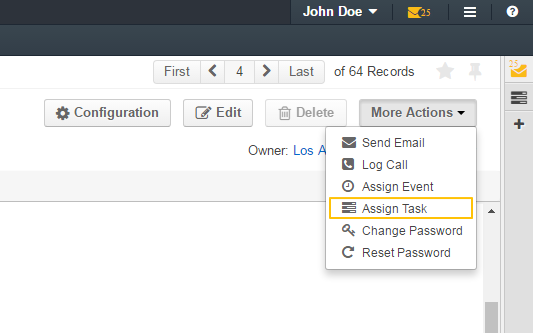

  3. On the user view page, click More Actions in the upper-right corner of the page and click Assign Task on the list.

../../../_images/user_assigntask0.png

  1. In the Assign Task To dialog box, specify the required data. For help on this, see the Add a Task for Another Record section of the Add Task and Assign Task guide.

../../../_images/user_assigntask.png

  1. Click Create Task. The task will appear in the Additional Information section, User Tasks subsection of the user view page.

Configure User’s Interface, Email Settings and Integrations

Important

Note that configuration you set up will be applicable only for the current organization. Therefore, there can be a situation when a user record has been created under the current organization but the user only has access to a different organization. In this case, the user with the corresponding permissions can log into the organization they have access to and modify system configuration for themselves on the My Configuration page.

  1. In the main menu, navigate System>User Management>Users.
  2. In the grid on the All Users page, click the required user.
  3. On the user view page, click Configuration in the upper-right corner of the page.
  4. On the Configuration page, in the left side-menu, click System Configuration. If requried, make changes to the user system configuration. For information about the fields, see the User System Configuration section.
  5. Click Save Settings in the upper-right corner of the page.

User System Configuration

For each option, you can set up an organization value by selecting the Use Organization check box next to it.

To revert changes to the default settings, click the Reset button in the upper-right corner of the page.

General setup
Localization

../../../_images/user_configuration_localization.png

Localization options

FieldDescription
LocaleSelect the default locale for the user. Numbers, addresses, names and dates will be formatted according to the selected locale.
Primary LocationSelect the country which will be considered the user’s primary location. The addresses the user sees on the interface will be formatted according to the rules of this country.
Format Address Per CountryWhen this option is selected, addresses will be formatted according to the rules of their countries. Otherwise, the primary location formatting will be applied.
TimezoneSelect the timezone for the user location. All dates and times will be displayed according to the specified timezone.
CurrencySelect the default currency for the user.

Map options

FieldDescription
Temperature UnitSelect the temperature unit. This settings will be applied for weather on map.
Wind Speed UnitSelect the wind speed unit.
Language settings

../../../_images/user_configuration_language.png

Languages

FieldDescription
Default LanguageSelect the the default language for the interface.
Display settings

../../../_images/user_configuration_display.png

User bar

FieldDescription
Show Recent Emails

Select this check box to display the recent emails on the user bar (they will appear next to the user name).

../../../_images/user_configuration_showemailsuserbar.png

WYSIWYG settings

FieldDescription
Enable WYSIWYG Editor

Select this check box to enable text formatting tools for emails, notes and comments.

../../../_images/user_configuration_wysiwyg.png

Data Grid settings

FieldDescription
Items Per Page By DefaultSelect how many records will appear on one page of record grids.
Lock Headers In GridsSelect this check box to ensure that headers of a record grid will stay visible while you scroll.
Record Pagination

Select this check box to enable the user navigate to the previous or next grid record from a record view page.

../../../_images/user_configuration_pagination.png
Record Pagination LimitType the maximum number of records that the user can navigate from a record view page.

Navigation bar

FieldDescription
PositionSelect whether the OroCRM main menu will be positioned at the top of the page or on its left.

Activity lists

FieldDescription
Sort By FieldSelect whether to sort activity records by the date when they were created or by the date when they were updated for the last time.
Sort DirectionSelect whether to sort records in the ascending or descending direction.
Items Per Page By DefaultSelect how many records will appear on one page of the activity grids.

Sidebar settings

FieldDescription
Enable Right SidebarSelect Yes to enable the user to see and utilize the right sidebar.
Enable Right SidebarSelect Yes to enable the user to see and utilize the right sidebar.

Reports settings

FieldDescription
Display SQL In Reports And SegmentsSelect this check box to enable the user to review the SQL request sent to the system for a report or a segment.

../../../_images/user_configuration_showsql.png

Email Configuration

../../../_images/user_configuration_email.png

Signature

FieldDescription
Signature ContentType the signature to be appended to the user’s emails.
Append Signature To Email BodySelect whether the signature must be appended automatically or manually.

Email synchronization settings

FieldDescription
Enable IMAPSelect this check box to enable the IMAP synchronization of the user’s remote mailbox with their OroCRM mailbox.
Enable SMTPSelect this check box to enable the SMTP synchronization of the user’s remote mailbox with their OroCRM mailbox.
UserIf the value is changed, new mailbox will be registered. All data from this mailbox will be lost
Check Connection/Retrieve FoldersClick this button to check whether the specified synchronization settings are correct and to retrieve the current folder structure of the user’s remote mailbox.

Email Threads

FieldDescription
Display Emails In Activities AsSelect whether to visually group original emails with replies to them in the Activities sections of the record view pages or show all emails separately.

Reply

FieldDescription
Default Reply Button

Select which button will be default for replying to emails: Reply or Reply All. Other button will continue be available in the Reply menu, it will just not be on the top of the list.

../../../_images/reply_selector1.png
Integrations
MS Outlook settings

Note

This functionality is available only for OroCRM Enterprise Edition. For more information about the synchronization with Outlook, see the Synchronization with Outlook guide.


../../../_images/user_configuration_outlook.png

Integration settings

FieldDescription
Sync DirectionSelect whether the data will be taken from OroCRM to Outlook, from Outlook to OroCRM or synchronization will occur in both directions.
Conflict ResolutionSelect whether OroCRM or Outlook has priority if the same piece of data has been changed in both systems.
CRM Sync Interval (In Seconds)Type how often changes on OroCRM side will be checked.
Outlook Sync Interval (In Seconds)Type how often changes on Outlook side will be checked.

Synchronization settings

FieldDescription
ContactsSelect this check box to synchronize the contacts.
TasksSelect this check box to synchronize the tasks.
Calendar EventsSelect this check box to synchronize the calendar events.

Change the User’s Password

  1. In the main menu, navigate System>User Management>Users.
  2. In the grid on the All Users page, click the required user.
  3. On the user view page, click More Actions in the upper-right corner of the page and click Change Password on the list.

../../../_images/user_changepassword0.png

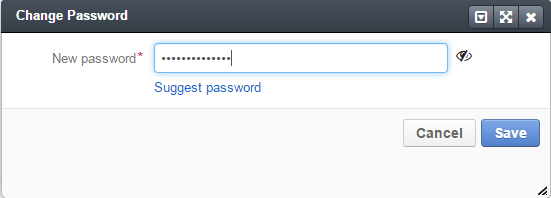

  1. In the Change Password dialog box, type a new password for the user. Alternatively, you can click the Suggest Password link to generate a secure random password. To see / hide the entered password, click the IcShow Show / IcHide Hide icon next to the New password field.

../../../_images/user_changepassword.png

  1. Click Save. The new password will be sent to the user’s primary email address.

Reset the User’s Password

  1. In the main menu, navigate System>User Management>Users.
  2. In the grid on the All Users page, click the required user.

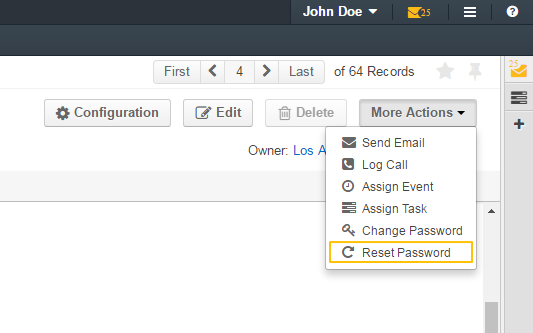

  3. On the user view page, click More Actions in the upper-right corner of the page and click Reset Password on the list.

../../../_images/user_resetpassword0.png

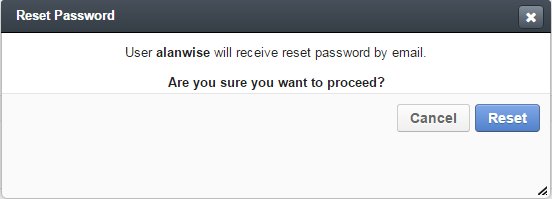

  1. In the Reset Password dialog box, click Reset. The password reset link will be sent to the user’s primary email address.

../../../_images/user_resetpassword.png

Important

The user will not be able to log into the OroCRM before their password is changed.

Export Users

You can export all user records into the .csv file. The exported file will contain all user record fields marked to be exported in the User entity settings. For more information about how to configure which fields will be exported, see the Entity Fields guide.

Note

All existing user records are exported at once.

Passwords are stored and exported in the hashed form.

To export user records, do the following:

  1. In the main menu, navigate System>User Management>Users.
  2. On the All Users page, click the Export button in the upper-right corner of the page.
  3. After the export job is finished, a green notification appears at the top of the page informing you about that. Click the Download result file link in the notification to download the .csv file with user records.
../../../_images/users_export.png

../../../_images/users_export_csv.png

Delete a User

Important

You cannot delete a user who has records assigned to them.

  1. In the main menu, navigate System>User Management>Users.
  2. In the grid on the All Users page, choose the user you want to delete, click the ellipsis menu at the right-hand end of the corresponding role and then click the IcDelete Delete icon.
../../../_images/user_delete.png
  1. In the Deletion Confirmation dialog box, click Yes, Delete.

Alternatively, you can delete a user from the role view by clicking the Delete button in the upper-right corner of the user view page.

../../../_images/user_delete2.png

Delete Multiple Users

You can delete multiple users at a time.

Important

You cannot delete users who have records assigned to them.

  1. In the main menu, navigate System>User Management>Users.
  2. In the grid on the All Users page, select the check boxes in front of the users you want to delete.
  3. Click the ellipsis menu at the right end of the grid header row and then click IcDelete Delete.
../../../_images/users_deletebulk_1-0.png
  1. In the Delete Confirmation dialog box, click Yes, Delete.
Browse maintained versions:2.62.32.01.12
Forums
Back to top
