Use Custom Reports¶
Create a Custom Report¶
See a short demo on how to create a report in your Oro application, or continue reading the step-by-step guidance below.
To create a custom report:
- Navigate to Reports and Segments > Manage Custom Reports in the main menu.
- Click Create Report at the top right of the page.
- On the Create Report page, define properties of the report, as described in the sections below.
General¶

The following fields are mandatory and must be defined for a report:
Field | Description |
---|---|
Name | A name that is used to refer to the report on the interface. It is recommended to create a name that indicates the information the report presents. |
Entity | A target entity of the report. Its data will be used to generate the report. Select one of the entities from the list. (You can also start typing the entity name in the text field to narrow down your entity choices.) |
Report Type | Select Table from the list. The report will present the data in the form of the table. Currently, this is the only available type. |
Owner | Select the user who can manage this report and be responsible for it. |
The only optional system field is Description. It can be used to save additional information about the report.
Designer¶
In the Designer section, you can define the structure of your report.

There are four main subsections that help you build your report:
- Columns—In this subsection, you define which columns your report will contain.
- Grouping—In this subsection, you can define how the information in your report will be aggregated.
- Grouping by Date—In this subsection, you can enable period filters.
- Filters—In this subsection, you apply filters to the data of your report to select only the information you need.
Columns¶
Add a Column¶
To add a column:
- Specify the required data:
- Click Add.
The field you have defined will appear in the COLUMN table.
Edit a Column¶
To edit a column:
- Click the Edit icon to the right of the corresponding row.
- Perform the required changes as described in the Add a Column section description.
- Click Save.
Delete a Column¶
To delete a column:
- Click the Delete icon to the right of the corresponding row.
- In the Delete Confirmation dialog box, click Yes, Delete.
Rearrange Report Columns¶
To move a column, click the Move icon to the right of the corresponding row, hold the mouse button, and drag the column up (to make it appear earlier in the report) or down (to make it appear later).
Grouping¶
When you specify a function for some of the fields, you need to add all other fields (that do not have any function specified for them) to the Grouping section.
Add a Field to Grouping¶
To add a field to the Grouping section, select it from the Grouping Columns field, and click Add. For example, you can see a total, average, maximum, and minimum budget amount for each opportunity with the same status.
Warning
Do not add fields that are not present in the Columns section.
Remove a Field from Grouping¶
To remove a field from the Grouping section:
- Click the Delete icon to the right of the corresponding row.
- In the Delete Confirmation dialog box, click Yes, Delete.

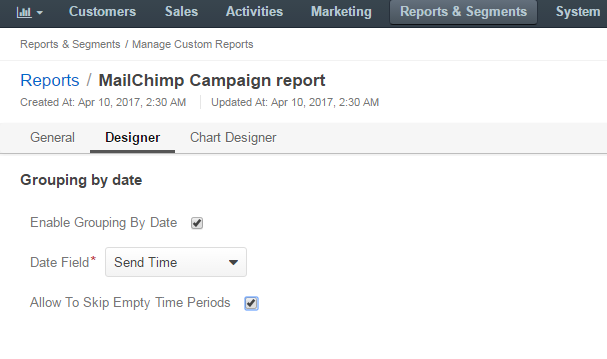

Grouping by Date¶
In this section, you can define whether to show additional period filters for this report on the report view page.

With these filters, you can define the date range to filter the report data and group the data in this range by periods (days, month, quarters, years). You can also decide whether to show or not the periods that do not contain any data.

Field | Description |
---|---|
Enable Grouping by Date | Select this check box to enable additional date filters. |
Date Field | Select the date field which will be used for grouping. Only the date fields related to the selected entity are available. |
Allow to Skip Empty Time Periods | Select/deselect this check box to show/hide the periods that do not contain any data. |
Chart Designer¶

Chart¶
OroCommerce supports line charts. To create a line chart for the report, define the following fields (all the fields are mandatory) in the Chart section.
Field | Description |
---|---|
Chart Type | Currently only the Line Chart option is available |
Category (X Axis) | Select the fields with the values which will form the X Axis of the report chart |
Value (Y Axis) | Choose the fields with the values which will form the Y Axis of the report chart |
For more details, see the chart example.
View a Report¶
View a Custom Report¶
From the Custom Reports List¶
In the main menu, navigate to Report & Segments > Manage Reports, and in the custom reports list, click the required report.
Alternatively, hover over the More Options menu and click the View icon.

From the Custom Report View Page¶
In the main menu, navigate to Report & Segments. Custom reports are gathered in sections by the name of the field they are related to. Select the required section, navigated further to the desired report, and click it.

Export a Report¶
Open the report that you want to export:
- To export a custom report, navigate to Report & Segments > Manage Reports in the main menu and click the required report.
- To export a system report, navigate to Report & Segments > Reports in the main menu and further to the required report (e.g. Report & Segments > Reports > Accounts > Life Time).
On the report page, click the Export Grid button in the upper-left corner, and then click CSV or XLSX to export the report to the file of the corresponding format.
Edit a Custom Report¶
From the Custom Reports Grid¶
In the main menu, navigate to Report & Segments > Manage Reports.
On the All Reports page, hover over the More Options menu, and then click the Edit icon.
Update the report details as required. For the description of the fields, see Create a Custom Report.
Click Save.
From the Custom Report View Page¶
In the main menu, navigate to Report & Segments > Manage Reports.
On the All Reports page, click the required report.
Alternatively, hover over the More Options menu, and then click the View icon.
On the report page, click Edit in the upper-right corner.
Update the report details as required. For the description of the fields, see Create a Custom Report.
Click Save.
Delete a Custom Report¶
From the Custom Reports Grid¶
In the main menu, navigate to Report & Segments > Manage Reports.
On the custom reports page, select the report to delete, hover over the More Options menu, and then click Delete.
In the Deletion Confirmation dialog box, click Yes, Delete.
From the Custom Report View Page¶
Alternatively, you can delete a custom report from the reports view page by clicking Delete in the upper-right corner.

Delete Multiple Custom Reports¶
You can delete multiple custom reports at a time.
- In the main menu, navigate to Report & Segments > Manage Reports.
- Select multiple custom reports by clicking in the left corner of the list header.
Hover over the More Options menu at the end of the list header and click to delete multiple reports at a time.
- In the Delete Confirmation dialog box, click Yes, Delete.
