Display Settings

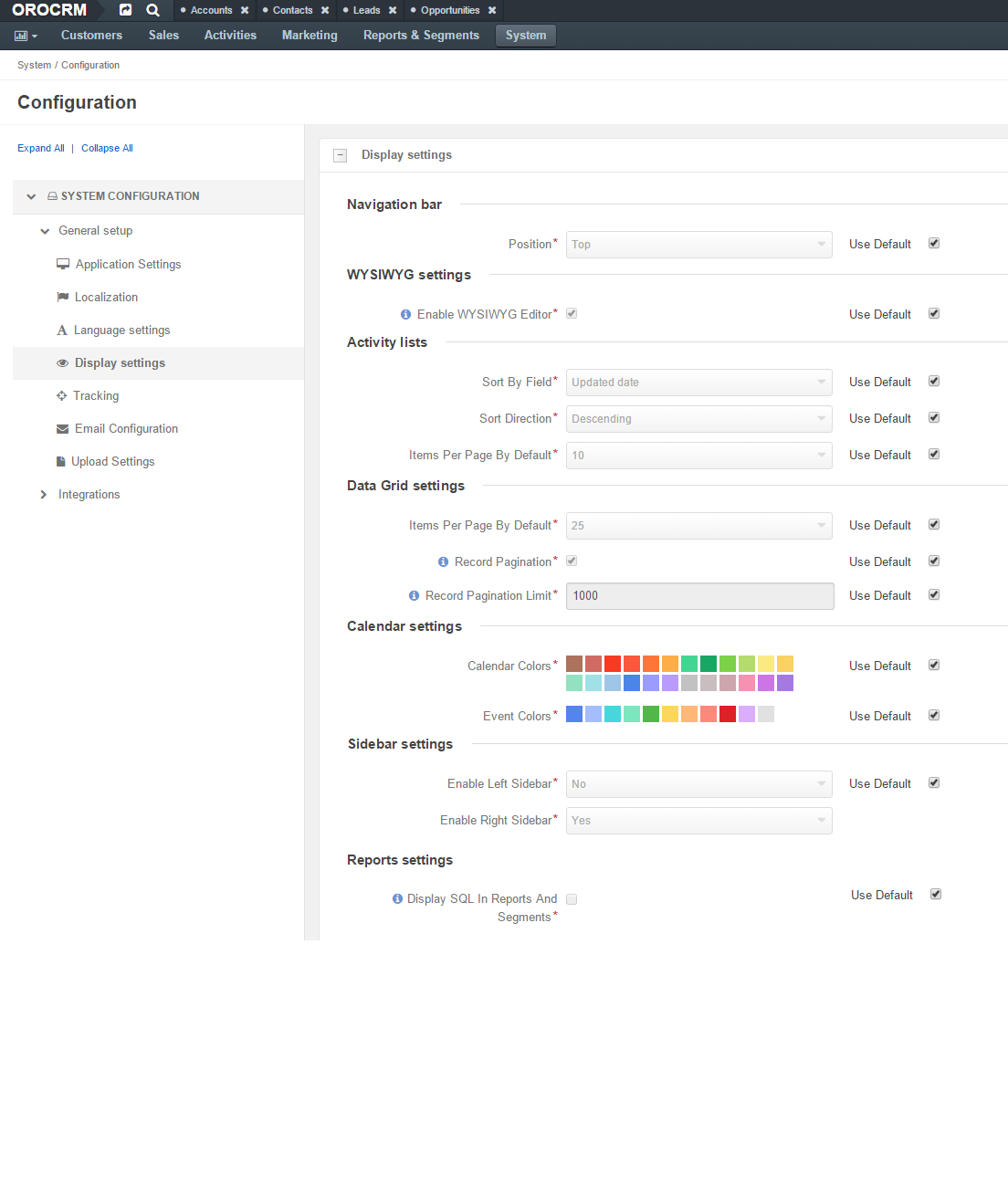

In this section you can define a number of display-related options to be applied to the Oro application:

../../../../_images/display_settings.png

To open display settings:

  1. Navigate to System > Configuration in the main menu.
  2. Select System Configuration > General Setup > Display Settings in the menu to the left.

Note

See a short demo on how to set display settings in your Oro application, or continue reading the guidance below.

User Bar

Enable or disable showing recent emails. The functionality is enabled by default.

../../../../_images/user_bar.png

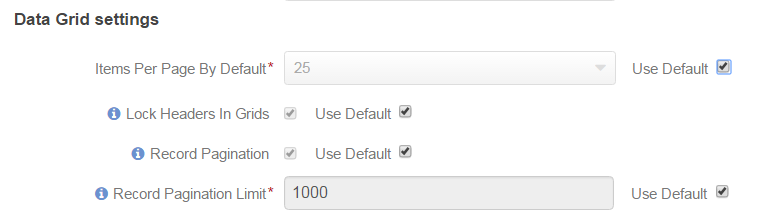

Data Grid Settings

Data grid settings define different options used to display all the record lists (grids) in the management console.

../../../../_images/data_grid_settings.png

The following options are available:

Option Description Default
Items Per Page By Default Defines the number of items displayed on one page of the grid by default (every time you open the grid). You can change the number each time. 25
Lock Headers In Grids Defines whether grid headers will be locked on a page during scrolling. Enabled
Record Pagination If enabled, you can navigate to previous or next grid record from a view page Enabled
Record Pagination Limit Defines a maximum number of records available for the record pagination*. (If there are more records, the pagination will be disabled for the grid to avoid performance deterioration) 1000

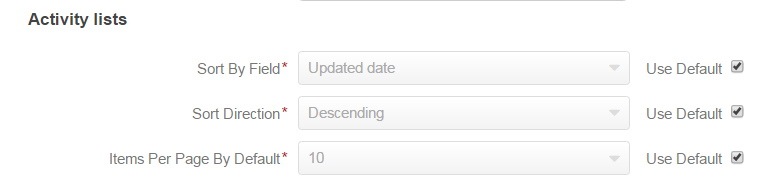

Activity Lists

The activity list setting defines different options to be applied to display activities.

../../../../_images/activity_lists.png

The following options are available:

Option Description Default
Sort By Field and Sort Direction Defines the field and direction used to sort activities in the grid by default (every time you open a page with the grid). You can changed the sorting of the grid each time. By default the activities updated last will be shown at the top.
Items Per Page By Default Defines the number of activities displayed on one page of the grid by default (every time you open the grid). You can changed the number each time. 10

WYSIWYG Settings

Define whether text formatting tools must be available for emails, notes, and comments.

The value is enabled by default.

Note

The formatting tools can also be enabled for other text fields in the course of integration.

../../../../_images/wysiwyg_settings.png

Tag Settings

Tag settings specify the taxonomy colors available in the system.

../../../../_images/tag_settings.png

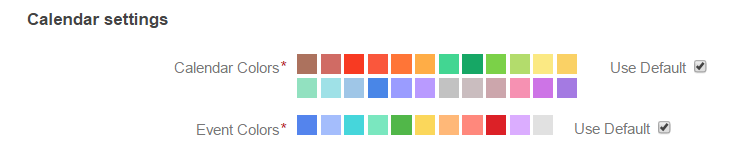

Calendar Settings

../../../../_images/calendar_settings.png

Calendar settings specify the colors available to manage calendars:

Option Description
Calendar Colors A set of colors available for different users’ calendars.
Event Colors A set of colors available for different events in the user’s calendar.

Map Settings

Option Description
Enable Map Preview Whether to show the location on a map when a customer views an address in the front store.
../../../../_images/map_settings_map.png

Important

This option does not affect maps in the management console.

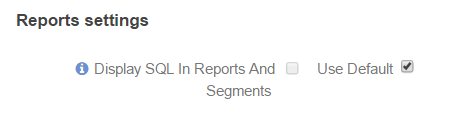

Reports Settings

../../../../_images/reports_settings.png

If this function is enabled, users can see the SQL request sent to the system for a report.

../../../../_images/sql_show.png

This way, users can check if a report has been developed correctly.

Hint

This link will only be available if the View SQL query of a report/segment capability has been enabled for the role.
