Blueprints of User Access Configuration

Warning

As a precondition, we have ensured that there is a sales assistant role with the Business Unit access level granted for the sales-related entities and the sales manager role with the Division access level granted for the same entities. The users in the examples below have one of these roles assigned.

Example 1: Access to Business Units of the Same Organization

A sales assistant Todd needs access to the business units highlighted in yellow that are in the same organization.

../../../_images/user_bu_2_org_1_sch.png

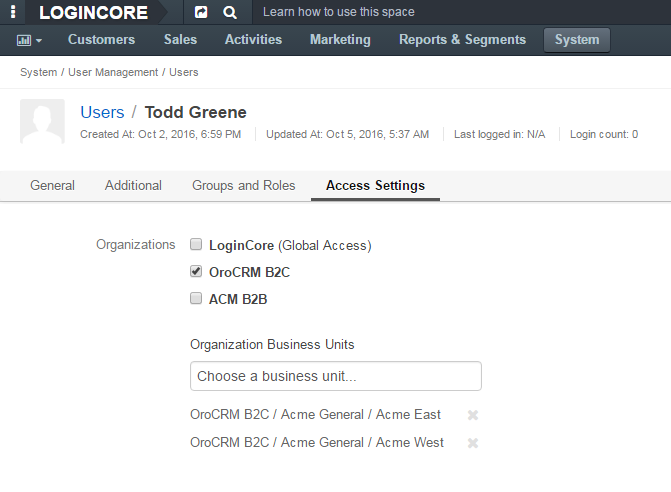

Select each of the business units in Access Settings:

../../../_images/user_bu_2_org_1.png

Example 2: Access to Business Units in Different Organizations

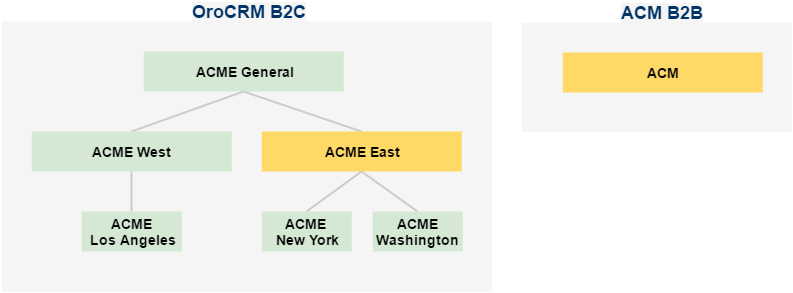

If a sales assistant Todd is helping in the sibling organization, he might need access to the business units highlighted in yellow that belong to the different organizations:

../../../_images/user_bu_2_org_2_sch.png

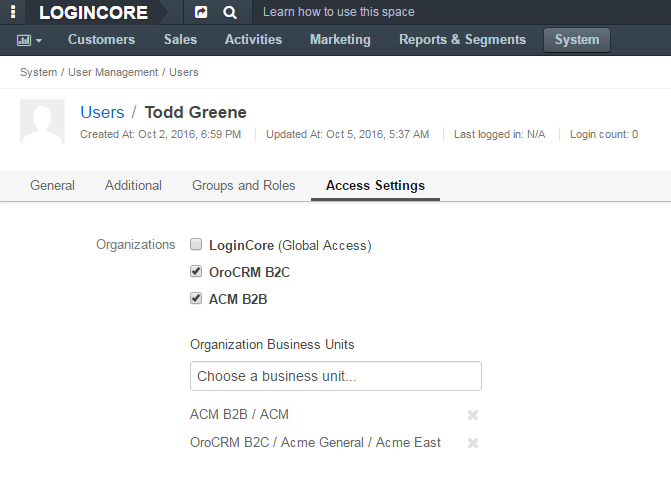

Select each of the organizations and business units to which Todd must have access in the Access Settings section:

../../../_images/user_bu_2_org_2.png

Example 3: Access to the Business Unit with Subunits

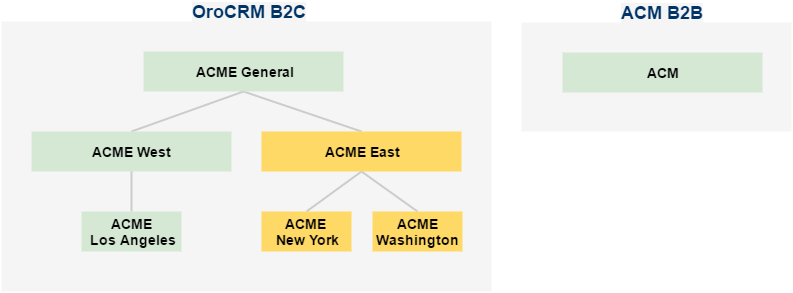

When Todd is promoted to the sales manager, his role changes to the one with the division access level, and he gets access to the business units and the chain of its subunits.

../../../_images/user_bu_2dl_org_1_sch.png

Note

A division is a business unit with the whole chain of its subunits, so you can select only the top business unit of the division (ACME East in our example) in Access Settings to automatically give Todd access to the entire division.

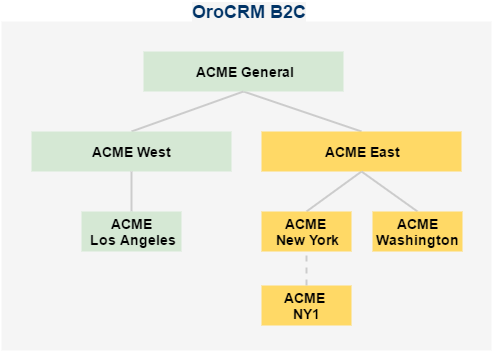

When a new business unit is added to the division, the sales manager has the necessary access to monitor it.

../../../_images/user_bu_2dl_org_1_sch2.png
