Customize CRUD Pages

OroCommerce equips users and developers with powerful UIs that they can use to manage both simple and complex data entities, including all entity attributes (fields) and relations. As a developer, you can enable standard CRUD pages for a new entity, and with the same ease, you can add more fields to any of the entities you have created before. Add new entity properties, create a migration script and modify the templates if necessary.

But what if you need to add a few more fields to one of the OroCommerce built-in entities or to an entity that somebody else’s extension has created?

Editing the OroCommerce source code or the code for third-party extensions is never a good idea. In this article, we will show you how to customize the CRUD pages of the existing entities with the custom code in your own bundle.

Note

CRUD stands for Create, Read, Update and Delete operations. They are commonly accompanied by some listing or navigation that allows retrieving, sorting, and filtering multiple records at once. In the context of OroCommerce, the data management UIs for the above operations are represented by the following pages:

  • List – represented by the data grids (for example, select Products → Products in the main navigation menu). For more information on customization of the data grids, see the Customizing Data Grids in OroCommerce section.

  • Create – an entity creation screen (for example, go to Products → Products and click on the Create Product button above the product data grid). In most cases, the entity creation screen and entity editing screen look and work the same, although there may be exceptions to this rule.

  • Read – an entity view page (for example, go to Products → Products and click on any product in the grid).

  • Update – an entity editing page (for example, go to Products → Products and select Edit in the action column, or click on the Edit button on the product view page).

  • Delete – there is no special screen for entity deletion other than the confirmation popup window (go to Products → Products select Delete in the action column, or click on the Delete button on the product view or edit page).

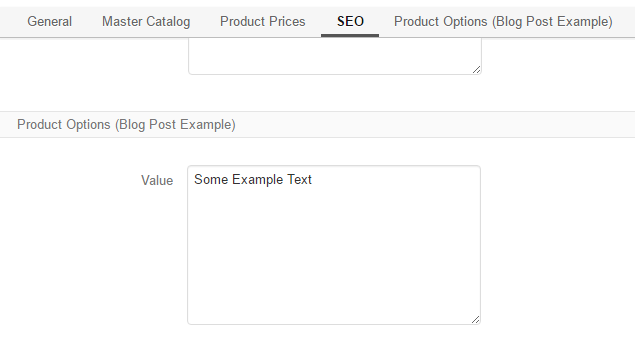

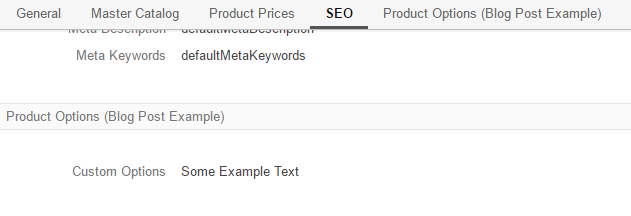

For example, let’s add a new text field to the product edit and view screens from our custom bundle.

Prerequisites

Before writing code, create a new bundle in your application. If you are not familiar with the bundle creation process yet, check how to create a new bundle in your Oro application. If you have already created a bundle for your app customizations, you are good to go and can reuse it in other tutorials as well.

Custom Data Entity

First, create a new entity to store custom data. It is still possible to create new product entity fields from your custom bundle, but we will show how you can add some data stored elsewhere (it can also be calculated on the fly or submitted to an external web service for storage).

Note

See the How to Create Entities article to learn more.

Let’s also make the entity compliant with the ProductHolderInterface, so it will be possible to reuse it in other places (e.g., reports). Besides the product reference, our entity will have only one text field to store our data. You can add multiple fields and use other data types according to your requirement:

src/Oro/Bundle/BlogPostExampleBundle/Entity/ProductOptions.php
<?php

namespace Oro\Bundle\BlogPostExampleBundle\Entity;

use Doctrine\ORM\Mapping as ORM;
use Oro\Bundle\ProductBundle\Entity\Product;
use Oro\Bundle\ProductBundle\Model\ProductHolderInterface;

/**
 * @ORM\Table(name="oro_bpe_prod_opts")
 * @ORM\Entity
 */
class ProductOptions implements ProductHolderInterface
{
    /**
     * @var integer
     *
     * @ORM\Id
     * @ORM\Column(type="integer")
     * @ORM\GeneratedValue(strategy="AUTO")
     */
    protected $id;

    /**
     * @var Product
     *
     * @ORM\ManyToOne(targetEntity="Oro\Bundle\ProductBundle\Entity\Product")
     * @ORM\JoinColumn(name="product_id", referencedColumnName="id", nullable=false, onDelete="CASCADE")
     */
    protected $product;

    /**
     * @var string
     *
     * @ORM\Column(name="value", type="text")
     */
    protected $value;

    // ..... Getters & Setters implementations .....
}

Installation And Migrations

You must create the installation and migration scripts if you plan to distribute your custom bundle or deploy it later to another application or machine. The installation script should create the required database structures during application installation, and the migration scripts will be used to update your module in the application to a specific version.

Note

More information about migrations is available in the OroMigrationBundle documentation.

We will have only one version of our custom bundle in this blog post, so the installation and migration code will look similar.

Installation:

src/Oro/Bundle/BlogPostExampleBundle/Migrations/Schema/OroBlogPostExampleBundleInstaller.php
<?php

namespace Oro\Bundle\BlogPostExampleBundle\Migrations\Schema;

use Doctrine\DBAL\Schema\Schema;
use Oro\Bundle\MigrationBundle\Migration\Installation;
use Oro\Bundle\MigrationBundle\Migration\QueryBag;

class OroBlogPostExampleBundleInstaller implements Installation
{
    /**
     * {@inheritdoc}
     */
    public function getMigrationVersion()
    {
        return 'v1_0';
    }

    /**
     * {@inheritdoc}
     */
    public function up(Schema $schema, QueryBag $queries)
    {
        /** Tables generation **/
        $this->createOroBpeProdOptsTable($schema);

        /** Foreign keys generation **/
        $this->addOroBpeProdOptsForeignKeys($schema);
    }

    /**
     * Create oro_bpe_prod_opts table
     */
    protected function createOroBpeProdOptsTable(Schema $schema)
    {
        $table = $schema->createTable('oro_bpe_prod_opts');
        $table->addColumn('id', 'integer', ['autoincrement' => true]);
        $table->addColumn('product_id', 'integer', []);
        $table->addColumn('value', 'text', []);
        $table->setPrimaryKey(['id']);
        $table->addIndex(['product_id']);
    }

    /**
     * Add oro_bpe_prod_opts foreign keys.
     */
    protected function addOroBpeProdOptsForeignKeys(Schema $schema)
    {
        $table = $schema->getTable('oro_bpe_prod_opts');
        $table->addForeignKeyConstraint(
            $schema->getTable('oro_product'),
            ['product_id'],
            ['id'],
            ['onDelete' => 'CASCADE', 'onUpdate' => null]
        );
    }
}

Migration:

src/Oro/Bundle/BlogPostExampleBundle/Migrations/Schema/v1_0/OroBlogPostExampleBundle.php
<?php

namespace Oro\Bundle\BlogPostExampleBundle\Migrations\Schema\v1_0;

use Doctrine\DBAL\Schema\Schema;
use Oro\Bundle\MigrationBundle\Migration\Migration;
use Oro\Bundle\MigrationBundle\Migration\QueryBag;

class OroBlogPostExampleBundle implements Migration
{
    /**
     * {@inheritdoc}
     */
    public function up(Schema $schema, QueryBag $queries)
    {
        /** Tables generation **/
        $this->createOroBpeProdOptsTable($schema);

        /** Foreign keys generation **/
        $this->addOroBpeProdOptsForeignKeys($schema);
    }

    /**
     * Create oro_bpe_prod_opts table
     */
    protected function createOroBpeProdOptsTable(Schema $schema)
    {
        $table = $schema->createTable('oro_bpe_prod_opts');
        $table->addColumn('id', 'integer', ['autoincrement' => true]);
        $table->addColumn('product_id', 'integer', []);
        $table->addColumn('value', 'text', []);
        $table->setPrimaryKey(['id']);
        $table->addIndex(['product_id']);
    }

    /**
     * Add oro_bpe_prod_opts foreign keys.
     */
    protected function addOroBpeProdOptsForeignKeys(Schema $schema)
    {
        $table = $schema->getTable('oro_bpe_prod_opts');
        $table->addForeignKeyConstraint(
            $schema->getTable('oro_product'),
            ['product_id'],
            ['id'],
            ['onDelete' => 'CASCADE', 'onUpdate' => null]
        );
    }
}

Form Types

To customize the new product field, implement a corresponding form type to be used in the main form on the product create and edit pages:

src/Oro/Bundle/BlogPostExampleBundle/Form/Type/ProductOptionsType.php
<?php

namespace Oro\Bundle\BlogPostExampleBundle\Form\Type;

use Oro\Bundle\BlogPostExampleBundle\Entity\ProductOptions;
use Symfony\Component\Form\AbstractType;
use Symfony\Component\Form\FormBuilderInterface;
use Symfony\Component\OptionsResolver\OptionsResolver;

class ProductOptionsType extends AbstractType
{
    const BLOCK_PREFIX = 'oro_blogpostexample_product_options';

    /**
     * {@inheritdoc}
     */
    public function buildForm(FormBuilderInterface $builder, array $options)
    {
        $builder->add('value');
    }

    /**
     * {@inheritdoc}
     */
    public function configureOptions(OptionsResolver $resolver)
    {
        $resolver->setDefaults(
            [
                'data_class' => ProductOptions::class
            ]
        );
    }

    /**
     * {@inheritdoc}
     */
    public function getBlockPrefix()
    {
        return self::BLOCK_PREFIX;
    }
}

The setDataClass method is used here to provide more flexibility while allowing for the reuse of this form type. Using it like this is optional.

Once you have your new form type, it should be registered in the service container to be recognizable by Symfony’s form factory:

src/Oro/Bundle/BlogPostExampleBundle/Resources/config/form_types.yml
services:
    oro_blogpostexample.form.type.product_options:
        class: Oro\Bundle\BlogPostExampleBundle\Form\Type\ProductOptionsType
        tags:
            - { name: form.type }

Form Type Extension

Any integrations between different form types within OroCommerce can use form type extension to tie the form types together. In our case, we need to list the following form events:

  • FormEvents::POST_SET_DATA – used to assign values to the form from our custom entity object;

  • FormEvents::POST_SUBMIT – used to convert, validate and persist our custom values.

src/Oro/Bundle/BlogPostExampleBundle/Form/Extension/ProductOptionsFormTypeExtension.php
<?php

namespace Oro\Bundle\BlogPostExampleBundle\Form\Extension;

use Doctrine\Persistence\ManagerRegistry;
use Doctrine\Persistence\ObjectManager;
use Doctrine\Persistence\ObjectRepository;
use Oro\Bundle\BlogPostExampleBundle\Entity\ProductOptions;
use Oro\Bundle\BlogPostExampleBundle\Form\Type\ProductOptionsType;
use Oro\Bundle\ProductBundle\Entity\Product;
use Oro\Bundle\ProductBundle\Form\Type\ProductType;
use Symfony\Component\Form\AbstractTypeExtension;
use Symfony\Component\Form\FormBuilderInterface;
use Symfony\Component\Form\FormEvent;
use Symfony\Component\Form\FormEvents;

class ProductOptionsFormTypeExtension extends AbstractTypeExtension
{
    const PRODUCT_OPTIONS_FIELD_NAME = 'productOptions';

    /** @var ManagerRegistry */
    protected $registry;

    public function __construct(ManagerRegistry $registry)
    {
        $this->registry = $registry;
    }

    /**
     * {@inheritdoc}
     */
    public function getExtendedType()
    {
        return ProductType::class;
    }

    /**
     * {@inheritdoc}
     */
    public function buildForm(FormBuilderInterface $builder, array $options)
    {
        $builder->add(
            self::PRODUCT_OPTIONS_FIELD_NAME,
            ProductOptionsType::class,
            [
                'label' => 'oro.blogpostexample.product_options.entity_label',
                'required' => false,
                'mapped' => false,
            ]
        );

        $builder->addEventListener(FormEvents::POST_SET_DATA, [$this, 'onPostSetData']);
        $builder->addEventListener(FormEvents::POST_SUBMIT, [$this, 'onPostSubmit'], 10);
    }

    public function onPostSetData(FormEvent $event)
    {
        /** @var Product|null $product */
        $product = $event->getData();
        if (!$product || !$product->getId()) {
            return;
        }

        $options = $this->getProductOptionsRepository()
            ->findOneBy(['product' => $product]);

        $event->getForm()->get(self::PRODUCT_OPTIONS_FIELD_NAME)->setData($options);
    }

    public function onPostSubmit(FormEvent $event)
    {
        /** @var Product|null $product */
        $product = $event->getData();
        if (!$product) {
            return;
        }

        /** @var ProductOptionsType $form */
        $form = $event->getForm();

        /** @var ProductOptions $options */
        $options = $form->get(self::PRODUCT_OPTIONS_FIELD_NAME)->getData();
        $options->setProduct($product);

        if (!$form->isValid()) {
            return;
        }

        $this->getProductOptionsEntityManager()->persist($options);
    }

    /**
     * @return ObjectManager
     */
    protected function getProductOptionsEntityManager()
    {
        return $this->registry->getManagerForClass(ProductOptions::class);
    }

    /**
     * @return ObjectRepository
     */
    protected function getProductOptionsRepository()
    {
        return $this->getProductOptionsEntityManager()
            ->getRepository(ProductOptions::class);
    }
}

Register the new form type extension in the service container:

src/Oro/Bundle/BlogPostExampleBundle/Resources/config/form_types.yml
services:
    oro_blogpostexample.form.extension.product_type:
        class: Oro\Bundle\BlogPostExampleBundle\Form\Extension\ProductOptionsFormTypeExtension
        public: true
        arguments:
            - "@doctrine"
        tags:
            - { name: form.type_extension, extended_type: Oro\Bundle\ProductBundle\Form\Type\ProductType }

UI Data Targets and Listener

Once the entity, the form type, and the form type extension are created, you can start customizing the User Interface.

Note

See the Layout section for more information about the UI customization.

Add custom data to the product view and edit/create pages. Use the following dataTargets:

  • product-view - used to display our custom data on the product view page;

  • product-edit - used to show our custom data on the product edit page;

  • product-create-step-two - used to add our custom data to the product creation page.

src/Oro/Bundle/BlogPostExampleBundle/Resources/config/services.yml
services:
    oro_blogpostexample.event_listener.form_view.product:
        class: Oro\Bundle\BlogPostExampleBundle\EventListener\ProductFormListener
        arguments:
            - '@translator'
            - '@oro_entity.doctrine_helper'
            - '@request_stack'
        tags:
            - { name: kernel.event_listener, event: oro_ui.scroll_data.before.product-view, method: onProductView }
            - { name: kernel.event_listener, event: oro_ui.scroll_data.before.product-edit, method: onProductEdit }
            - { name: kernel.event_listener, event: oro_ui.scroll_data.before.product-create-step-two, method: onProductEdit }

You can implement the event listener this way:

src/Oro/Bundle/BlogPostExampleBundle/EventListener/ProductFormListener.php
<?php

namespace Oro\Bundle\BlogPostExampleBundle\EventListener;

use Oro\Bundle\BlogPostExampleBundle\Entity\ProductOptions;
use Oro\Bundle\EntityBundle\ORM\DoctrineHelper;
use Oro\Bundle\ProductBundle\Entity\Product;
use Oro\Bundle\UIBundle\Event\BeforeListRenderEvent;
use Symfony\Component\HttpFoundation\RequestStack;
use Symfony\Contracts\Translation\TranslatorInterface;

/**
{
    /** @var TranslatorInterface */
    protected $translator;

    /** @var DoctrineHelper */
    protected $doctrineHelper;

    /** @var RequestStack */
    protected $requestStack;

    public function __construct(
        TranslatorInterface $translator,
        DoctrineHelper $doctrineHelper,
        RequestStack $requestStack
    ) {
        $this->translator = $translator;
        $this->doctrineHelper = $doctrineHelper;
        $this->requestStack = $requestStack;
    }

    public function onProductView(BeforeListRenderEvent $event)
    {
        $request = $this->requestStack->getCurrentRequest();
        if (!$request) {
            return;
        }

        // Retrieving current Product Id from request
        $productId = (int)$request->get('id');
        if (!$productId) {
            return;
        }

        /** @var Product $product */
        $product = $this->doctrineHelper->getEntityReference(Product::class, $productId);
        if (!$product) {
            return;
        }

        /** @var ProductOptions $productOptions */
        $productOptions = $this->doctrineHelper
            ->getEntityRepository(ProductOptions::class)
            ->findOneBy(['product' => $product]);

        if (null === $productOptions) {
            return;
        }

        $template = $event->getEnvironment()->render(
            '@OroBlogPostExample/Product/product_options_view.html.twig',
            [
                'entity' => $product,
                'productOptions' => $productOptions
            ]
        );
        $this->addBlock($event->getScrollData(), $template, 'oro.blogpostexample.product.section.product_options');
    }

    public function onProductEdit(BeforeListRenderEvent $event)
    {
        $template = $event->getEnvironment()->render(
            '@OroBlogPostExample/Product/product_options_update.html.twig',
            ['form' => $event->getFormView()]
        );
        $this->addBlock($event->getScrollData(), $template, 'oro.blogpostexample.product.section.product_options');
    }

    /**
     * @param ScrollData $scrollData
     * @param string $html
     * @param string $label
     * @param int $priority
     */
    protected function addBlock(ScrollData $scrollData, $html, $label, $priority = 100)
    {
        $blockLabel = $this->translator->trans($label);
        $blockId    = $scrollData->addBlock($blockLabel, $priority);
        $subBlockId = $scrollData->addSubBlock($blockId);
        $scrollData->addSubBlockData($blockId, $subBlockId, $html);
    }
}

Templates

Finally, define the templates. One for the form:

src/Oro/Bundle/BlogPostExampleBundle/Resources/views/Product/product_options_update.html.twig
{#Render entire child form#}
{{ form_widget(form.productOptions) }}
{#Display Errors#}
{{ form_errors(form.productOptions) }}

And one for the view:

src/Oro/Bundle/BlogPostExampleBundle/Resources/views/Product/product_options_view.html.twig
{% import '@OroUI/macros.html.twig' as UI %}
{#Display our custom value#}
{{ UI.renderHtmlProperty('oro.blogpostexample.product_options.label'| trans, productOptions.value) }}

As a result, the following blocks will be displayed on the product edit and create pages:

../../../_images/crud_result_edit.png

In view mode, the block looks as follows:

../../../_images/crud_result_view.png

A fully working example, organized into a custom bundle, is available in the OroB2BBlogPostExampleBundle.

To add this bundle to your application:

  • Extract the content of the zip archive into a source code directory recognized by your composer autoload settings;

  • Clear the application cache with the following command:

    `php bin/console cache:clear`

  • Run the migrations with the following command:

    `app oro:migration:load --force --bundles=OroBlogPostExampleBundle`
